Unrivalled performance

  • High-class experience

    An elegant design combined with premium building materials gives users a feeling of cleanliness and comfort.

  • Save up to 90% water

    With Jets™ vacuum system toilets only use 0.6 L per flush whereas traditional toilets use between 6 to 3 L per flush.

  • Maximum capacity

    Utilizing vacuum removes the need for toilets to refill before flushing which allows for a greater number of visits per hour.

  • Plug & play set up

    Units are connected via a simple plug & play set up saving precious time while offering a high degree of flexibility.

  • exceptional reliability

    With over 20 years of industry experience our products have been thoroughly tested and developed over time.

Specifications →

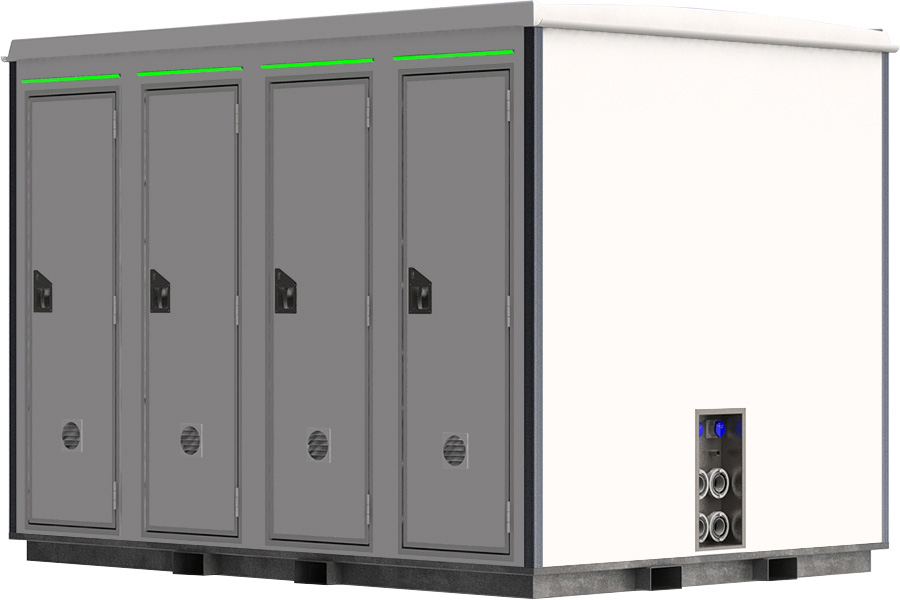

Our high capacity toilets utilize the latest technology to provide an excellent user experience while being capable of handling a large number of visits per hour. The unique vacuum system means that guests never have to wait for toilets to refill before flushing. Because toilets use air instead of water to transport sewage the amount of water needed is reduced by up to 90%.

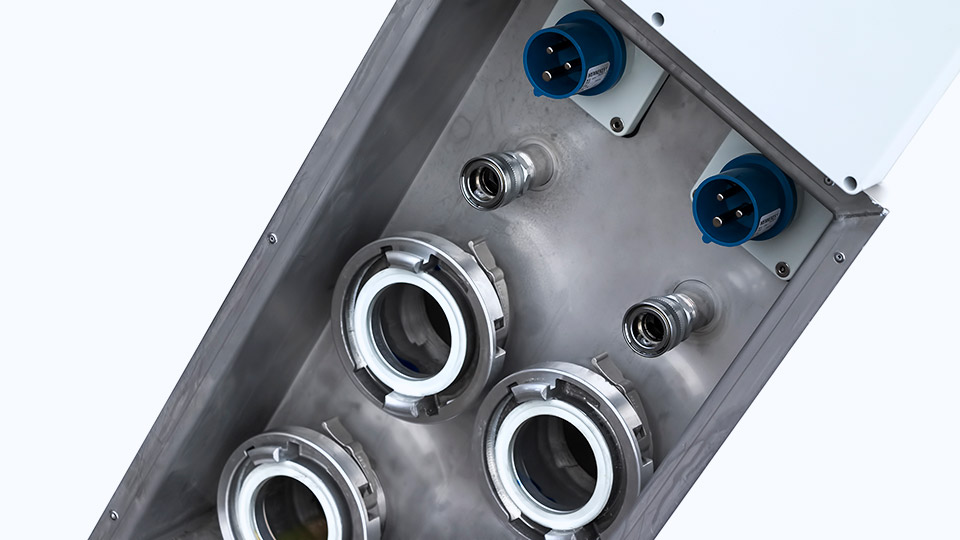

All units are connected via a simple plug & play set up saving precious time while allowing for a more flexible layout. A central pump station provides water supply, vacuum lines and power to all units meaning that wastewater from all toilets is collected at one common point.

A better experience

Jets™ vacuum toilet

Award winning design, environmentally friendly

Jets™ vacuum toilets offer outstanding performance combined with an award winning Scandinavian design offering rental operators and event organizers a higher sanitation standard than ever before. The Vacuumarator™ pump inside the pump station only uses 1/10th the water of a traditional toilet and comes with fluid category 5 backflow protection.

Self-dimming LED light

Enhanced overall experience, low energy cost

Rooms feature lines of self-dimming LEDs behind a semi-transparent plate creating a pleasing atmosphere and enhancing the overall experience. Doors have multi colored LEDs above them indicating occupancy that dims according to time of day. In recent years, customer requirements have shifted towards toilets that are also well-designed and visually pleasing.

High-grade insulation

Comfortable every day - all year round

EventCubes are fully insulated with 40 - 60 mm XPS foam (walls, floor and roof) providing a comfortable experience all year round. In addition, the high insulation reduces the amount of energy required for heating. This is especially important during winter when heating is required at all times to prevent frost damage.

Hygienic and odor-free

Protected against damp, mold and degradation

EventCubes are built strictly from inorganic materials to protect against damp, mold and degradation over time. The inside consists of fiberglass with a hidden pipe feed and wall-mounted fittings, giving the user a feeling of cleanliness and comfort. The smooth surfaces and obstacle-free floor can be cleaned quickly and efficiently.

JETS™ VACUUM TOILET

Award winning design, exceptional reliability

Jets™ vacuum toilets offer outstanding performance combined with an award winning Scandinavian design offering rental operators and event organizers a higher sanitation standard than ever before. The Vacuumarator™ pump inside the pump station only uses 1/10th the water of a traditional toilet and comes with fluid category 5 backflow protection.

AMBIENT LED BACKLIGHT

Enhanced overall experience, low energy usage

Toilets feature illuminated lines of LEDs behind a semitransparent plate creating a pleasing atmosphere and enhancing the overall experience. In recent years, customer requirements have shifted towards toilets that are also well-designed and visually pleasing. Attention to detail help elevate customer satisfaction.

HIGH-GRADE INSULATION

Comfortable every day - all year round

EventCubes are fully insulated with 40 - 60 mm XPS foam (walls, floor and roof) providing a comfortable experience all year round. In addition, the high insulation reduces the amount of energy required for heating. This is especially important during winter when heating is required at all times to prevent frost damage.

HYGIENIC AND ODOR-FREE

Protected against damp, mold and degradation

EventCubes are built strictly from inorganic materials to protect against damp, mold and degradation over time. The inside consists of fiberglass with a hidden pipe feed and wall-mounted fittings, giving the user a feeling of cleanliness and comfort. The smooth surfaces and obstacle-free floor can be cleaned quickly and efficiently.

A smarter solution

Low water consumption

Vacuum toilets use air instead of water to transport sewage. This advantage significantly reduces water usage. Logistical costs for water transport and sewage handling are lower, and a significant reduction in man hours saves you time and money. Furthermore, the airflow vents away odors and reduces the risk of spreading airborne pathogens improving overall hygiene.

More stable operation

A reduction in water usage not only benefits the bottom line and the environment, it also helps to ensure a reliable sanitation service throughout the whole event. With traditional toilets local water supply networks often can't maintain sufficient water pressure during peak hours at large events. This means it takes longer for toilets to refill and the risk of clogging increases as queues grow longer.

Toilet comparison

Vacuum

  • Uses only 0.6 L per flush with no refilling time in between

  • Powerful vacuumarator™ pump greatly reduces risk of clogging

  • Low water usage helps to ensure a stable sanitation service

Regular

  • Uses 5-10 times as much water and must wait for refilling

  • Gravity-dependent transport means higher risk of clogging

  • Risk of slowdown due to overload on local water supply network

Chemical

  • Lack of flushing means chemicals are needed to mask odors

  • Limited volume leads to trucks maneuvering through crowds regularly

  • Shuts down completely for pump-out at regular intervals

save time before,
during and after

Quick setup

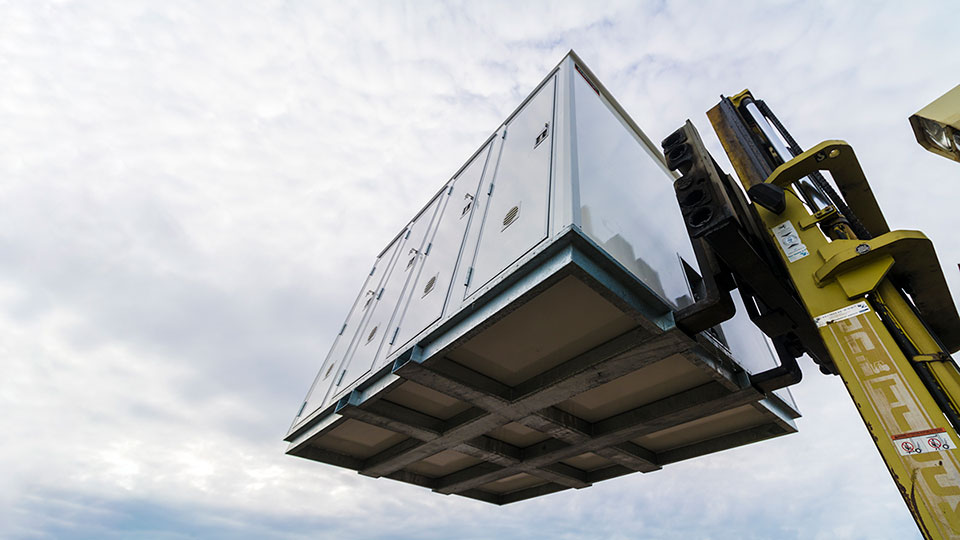

EventCubes are built using a modular design. Units are connected via a simple plug & play-type set up. All units are compatible meaning that a particular layout can be reconfigured and scaled up and down conveniently offering operators and organizers a very high degree of flexibility.

Clear overview

Toilets are controlled from a central pump station that provides water supply and power and transports sewage giving the operator a clear overview. Due to the electronic components being located in a separate unit, service and maintenance can be performed quicker with no interruptions.

Easy cleaning

EventCubes are built strictly from inorganic materials to protect against damp, mold and degradation over time. The smooth surfaces and obstacle-free floor can be cleaned quickly and efficiently. The floor has a slope that extends down towards the doors allowing water to drain freely after cleaning.

Ready for the future

EventCubes come with built-in sensors capable of sending and receiving data. We are currently developing software that allows you to take full advantage of this technology giving you and your team the best experience while maximizing productivity. The software will provide a complete status overview of all operating units plus post‐event reports such as user statistics, water usage and up-time which can be used as documentation for finished events and for preparation of the next. Learn more at www.futedo.com.

  • Respond faster

    Receive a notification if a unit requires inspection. For example, if a room needs cleaning or toilet paper, there's a vacuum leakage or a room has been occupied for much longer than usual.

  • Compare data

    Monitor and compare the effectiveness of different layouts from data collected by the sensors. Use real data to optimize your layout, reduce queuing and serve your customers better.

  • Better workflow

    Use our smartphone app as a checklist for your team. Get an easy overview of what units have been cleaned, when the toilet paper was last changed and if all units are locked after closing.

  • Happier guests

    "The toilet system is more important than the sound system" - Sweden Rock - A well-functioning sanitation system greatly increases guests' satisfaction and allows vendors to sell more.

Premium quality

EventCubes were developed using the expertise we have gathered from over 20 years of supplying high end trailers and cabins for the construction and event industry. We use premium components and materials to ensure that our products are exceedingly reliable with an exceptionally long lifetime. As the Nordics' leading manufacturer, we are able to put some of the best products on the market direct from suppliers. A direct relationship with our suppliers means that we can work closely with them to develop parts that optimize functionality, design and durability.

Heat galvanized steel chassis with pockets

Solid cast curved roof with water drainage

Premium fiberglass panels with XPS foam

High performance polyurea floor coating

Stainless steel couplings and door handles

Inorganic materials prevent degradation

internal steel frame holding toilets

sturdy anodized aluminum profiles

Vacuum lines reinforced with steel

Heat galvanized steel chassis with pockets

Heat galvanized steel
chassis with pockets

SOLID CAST CURVED ROOF
WITH WATER DRAINAGE

Solid cast curved roof with water drainage

Premium fiberglass panels with XPS foam

PREMIUM fiberglass PANELS
WITH XPS FOAM

HIGH PERFORMANCE POLYUREA
FLOOR COATING

High performance polyurea floor coating

Stainless steel couplings and door handles

STAINLESS STEEL COUPLINGS
AND DOOR HANDLES

INORGANIC MATERIALS
PREVENT DEGRADATION

Inorganic materials prevent degradation

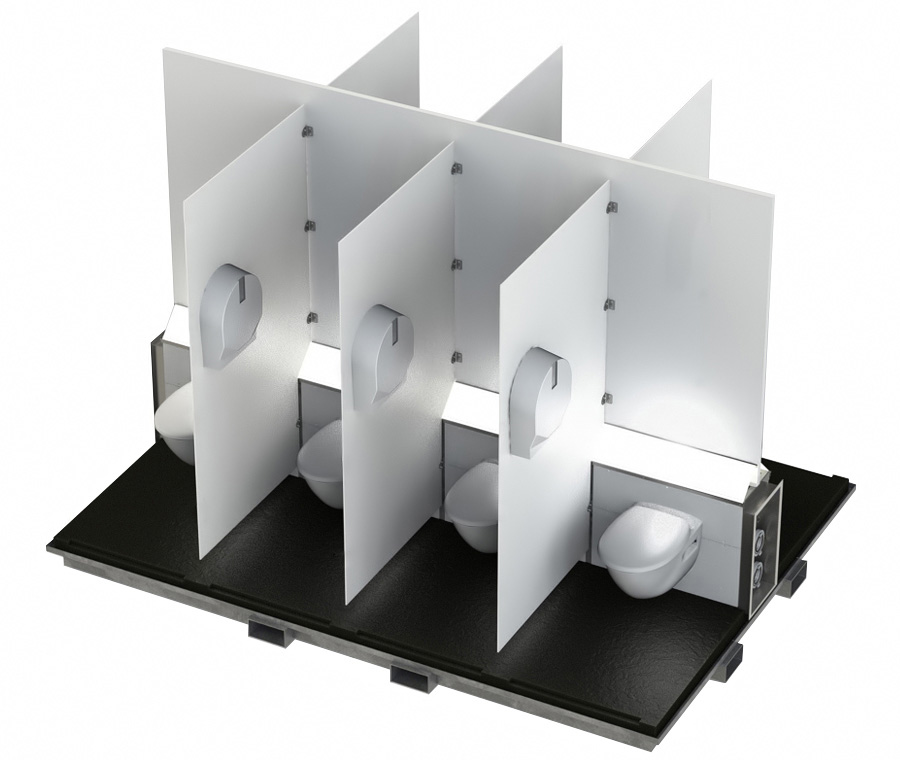

internal steel frame holding toilets

Internal steel frame
holding toilets

Sturdy anodized
aluminum profiles

sturdy anodized aluminum profiles

Vacuum lines reinforced with steel

Vacuum lines
reinforced with steel

Heat galvanized steel chassis with pockets

Heat galvanized steel chassis with pockets

Solid cast curved roof with water drainage

SOLID CAST CURVED ROOF WITH WATER DRAINAGE

Premium fiberglass panels with XPS foam

PREMIUM fiberglass PANELS WITH XPS FOAM

High performance polyurea floor coating

HIGH PERFORMANCE POLYUREA FLOOR COATING

Stainless steel couplings and door handles

STAINLESS STEEL COUPLINGS AND DOOR HANDLES

Inorganic materials prevent degradation

INORGANIC MATERIALS PREVENT DEGRADATION

internal steel frame holding toilets

Internal steel
frame holding toilets

sturdy anodized aluminum profiles

Sturdy anodized
aluminum profiles

Vacuum lines reinforced with steel

Vacuum lines reinforced
with steel

Drawing

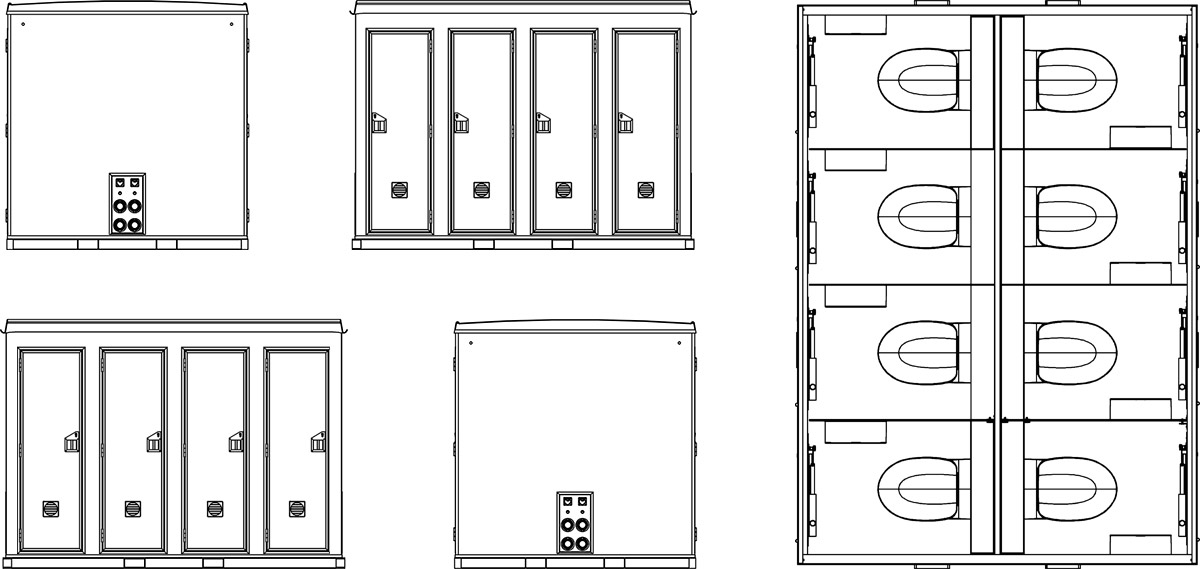

320 A - 8 toilets

320 B - 6 toilets + hand basins

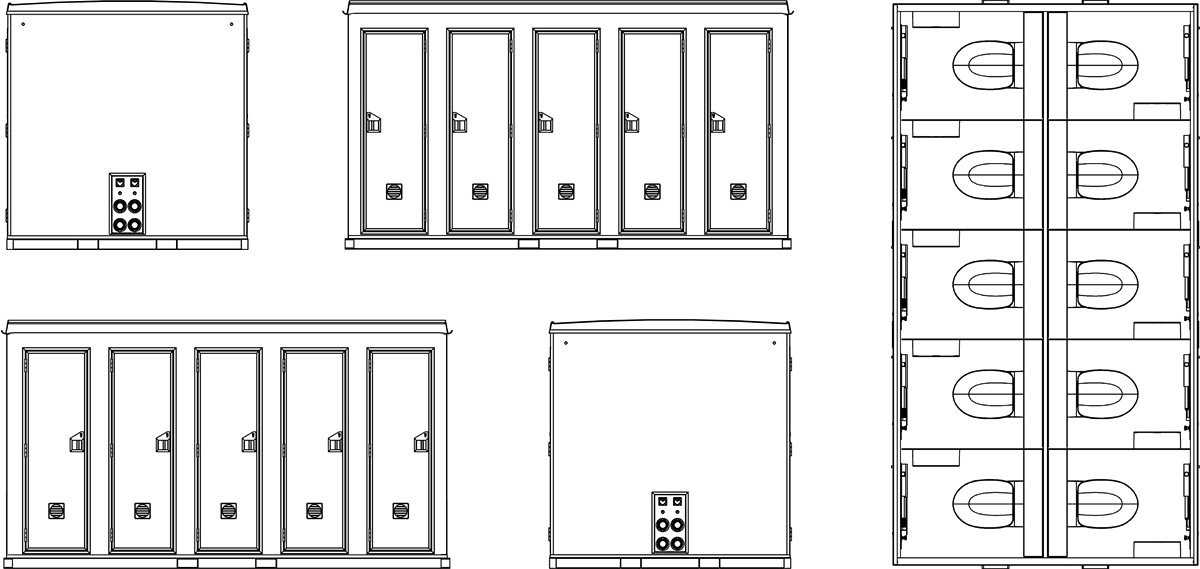

420 A - 10 toilets

420 B - 8 toilets + hand basins

specifications

Size / weight

Capacity

Toilets

Equipment

Lighting

Power

Water

Vacuum

Roof

Walls

Floor

Frame

330 x 230 cm (external), 1500 kg

360 visits per hour

8 x Jets™ vacuum toilets (double side)

8 x paper dispensers, 8 x bag clips, 8 x door sensors, 8 x water sensors

Ambient LED backlight, LED lights along roof

2 x 230 V CEE inlet, 2 x 230 V CEE outlet

2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet

4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX

One-piece molded roof with an even bend for optimal strength and water drainage

XPS insulated composite box with premium fiberglass cladding

Scratch resistant polyurea anti-slip coating

Heat galvanized steel frame with forklift pockets on all sides

330 x 230 cm (external), 1500 kg

270 visits per hour

6 x Jets™ vacuum toilets with hand basins (double side)

6 x paper dispensers, 6 x bag clips, 6 x door sensors, 6 x water sensors

Ambient LED backlight, LED lights along roof

2 x 230 V CEE inlet, 2 x 230 V CEE outlet

2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet

4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX

One-piece molded roof with an even bend for optimal strength and water drainage

XPS insulated composite box with premium fiberglass cladding

Scratch resistant polyurea anti-slip coating

Heat galvanized steel frame with forklift pockets on all sides

430 x 230 cm (external), 1500 kg

450 visits per hour

10 x Jets™ vacuum toilets (double side)

10 x paper dispensers, 10 x bag clips, 10 x door sensors, 10 x water sensors

Ambient LED backlight, LED lights along roof

2 x 230 V CEE inlet, 2 x 230 V CEE outlet

2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet

4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX

One-piece molded roof with an even bend for optimal strength and water drainage

XPS insulated composite box with premium fiberglass cladding

Scratch resistant polyurea anti-slip coating

Heat galvanized steel frame with forklift pockets on all sides

430 x 230 cm (external), 1500 kg

360 visits per hour

8 x Jets™ vacuum toilets with hand basins (double side)

8 x paper dispensers, 8 x bag clips, 8 x door sensors, 8 x water sensors

Ambient LED backlight, LED lights along roof

2 x 230 V CEE inlet, 2 x 230 V CEE outlet

2 x 3/4 camlock inlet, 2 x 3/4 camlock outlet

4 x 3' storz couplings inlet, 4 x 3' storz couplings outlet, 1 x 2' storz coupling AUX

One-piece molded roof with an even bend for optimal strength and water drainage

XPS insulated composite box with premium fiberglass cladding

Scratch resistant polyurea anti-slip coating

Heat galvanized steel frame with forklift pockets on all sides

Disclaimer: We are constantly seeking to improve our products and services and as a result all specifications are subject to change.
